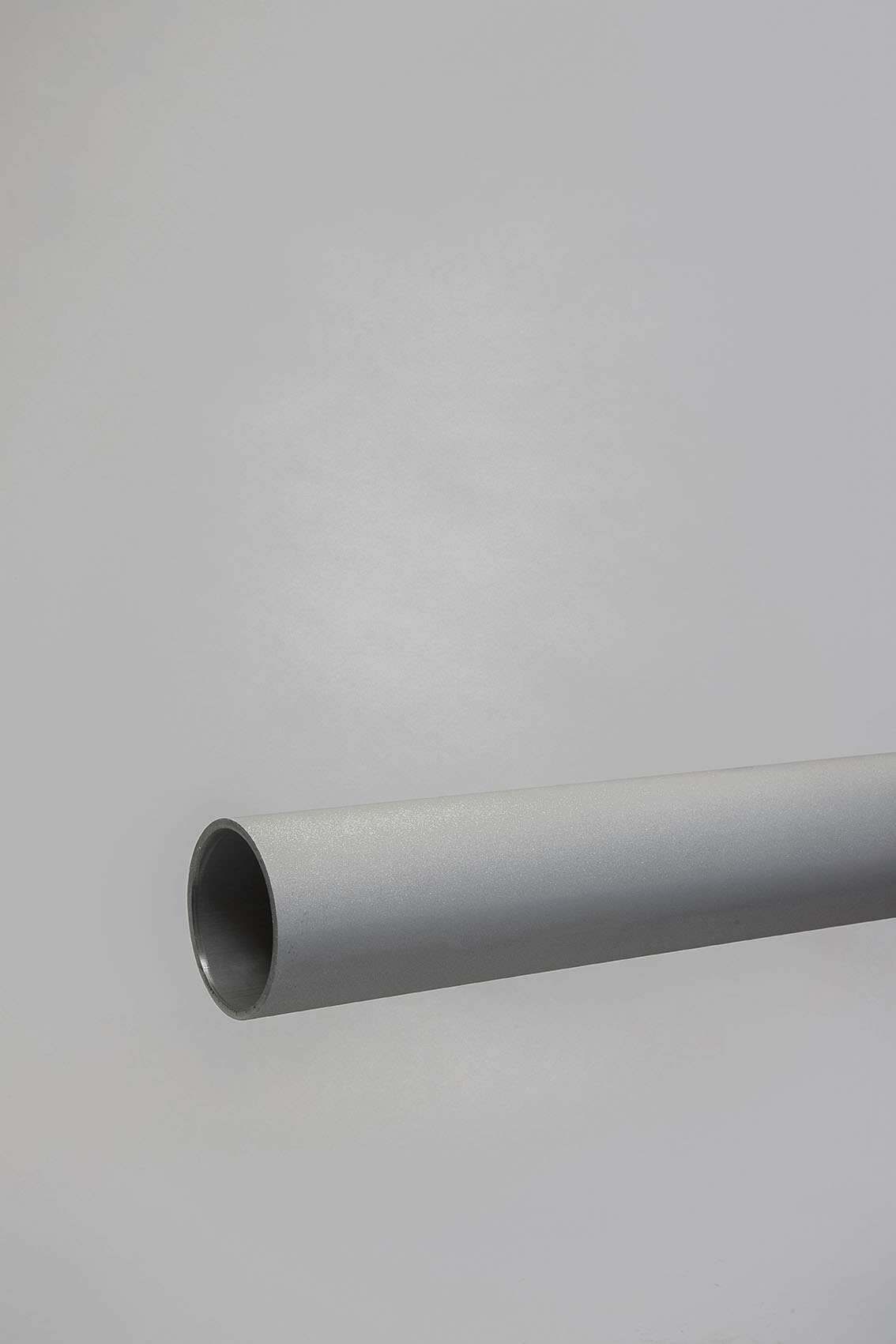

DC-100 P1 (100 X 5)
Round shaft = Type 1
for column diameter 100 mm, standard wall tickness 5 mm, inner diameter 90 mm
DC-100 P1 2000
DC-100 P1 2500
DC-100 P1 3000
/ P1
-
DIMENSION
-
CROSS - SECTIONAL VIEW
-

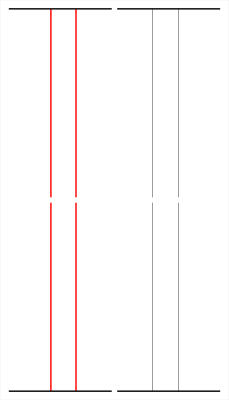

EXPLODED VIEW
- CAD - DRAWING 2D
-
BUCKING LOAD REPORT
The calculations are theoretical values, if the load is close to the indicated values, please contact an engineering firm. Aluminiumgieterij Declercq can not be held responsible for any damage caused by the adaptation of the chosen column against overloading.
DC-100 P1* Dimensions available 1000 mm tot 6000 mm.
* The price of the shafts is calculated per 1/2 meter.
* Shafts are cut for free.
Our 'smooth' shaft for the assembly of bespoke and cut to measure decorative columns, pillars and posts for verandah's, conservatories, gazebos, terraces, patios, pergolas or for interior decoration or renovation projects. It will be very adequate for projects including large and aesthetically charged capitals and/or bases, so as to obtain a well-balanced realization.This shaft is available in three different wall-thicknesses: 5, 9 and 10 mm. These different thicknesses obviously result in different axial strenghts. Our columns are both decorative, architectural and structural.
