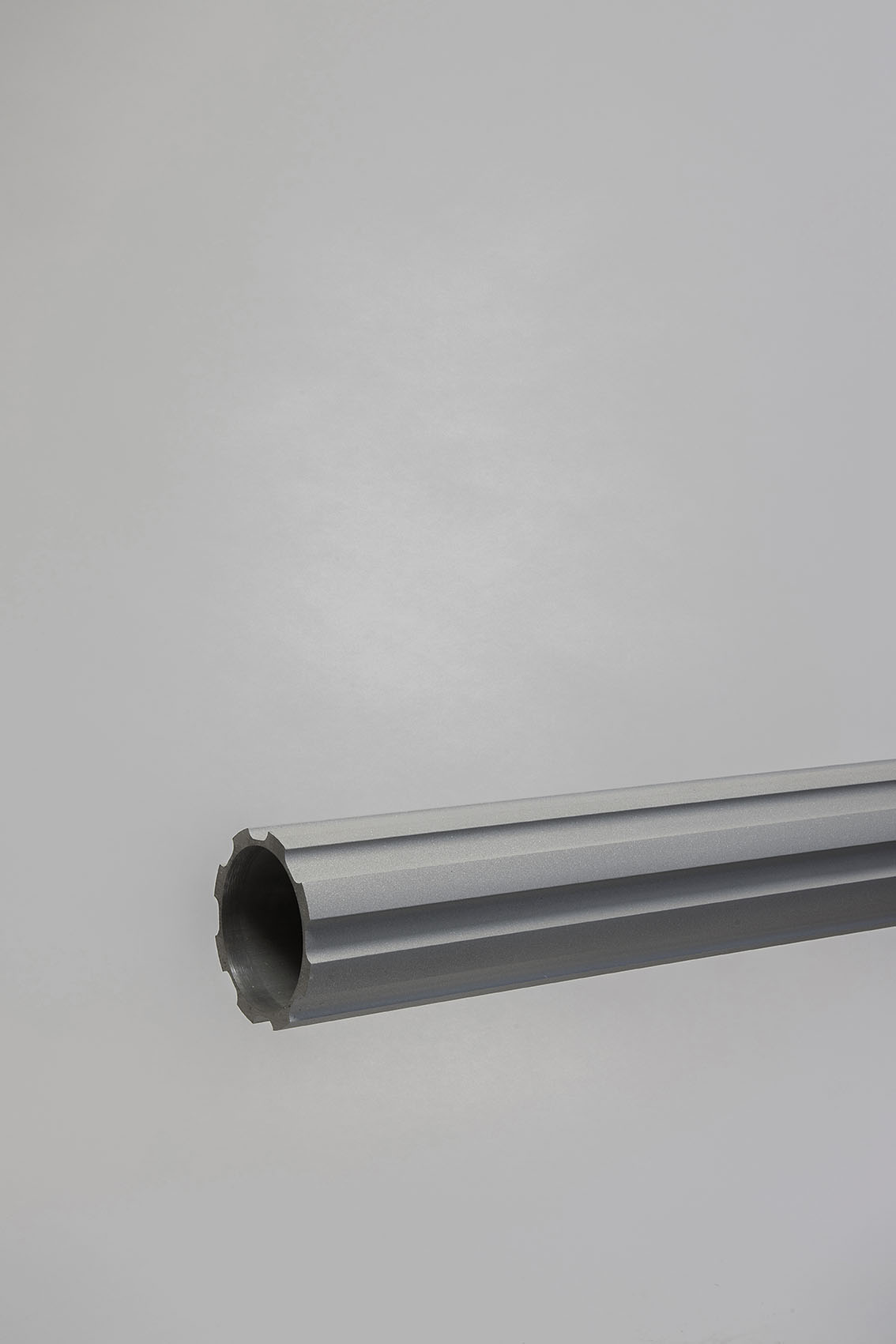

DC-100 P2 (100 x 9-3)
Fluted shaft= Type 2
Column diameter 100 mm, wall thickness 9 mm - 3 mm, inner diameter 82 mm
DC-100 P2 2000
DC-100 P2 2500
DC-100 P2 3000
/ P2
-

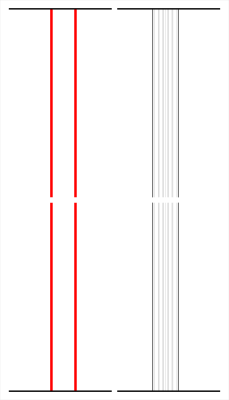

DIMENSION
-

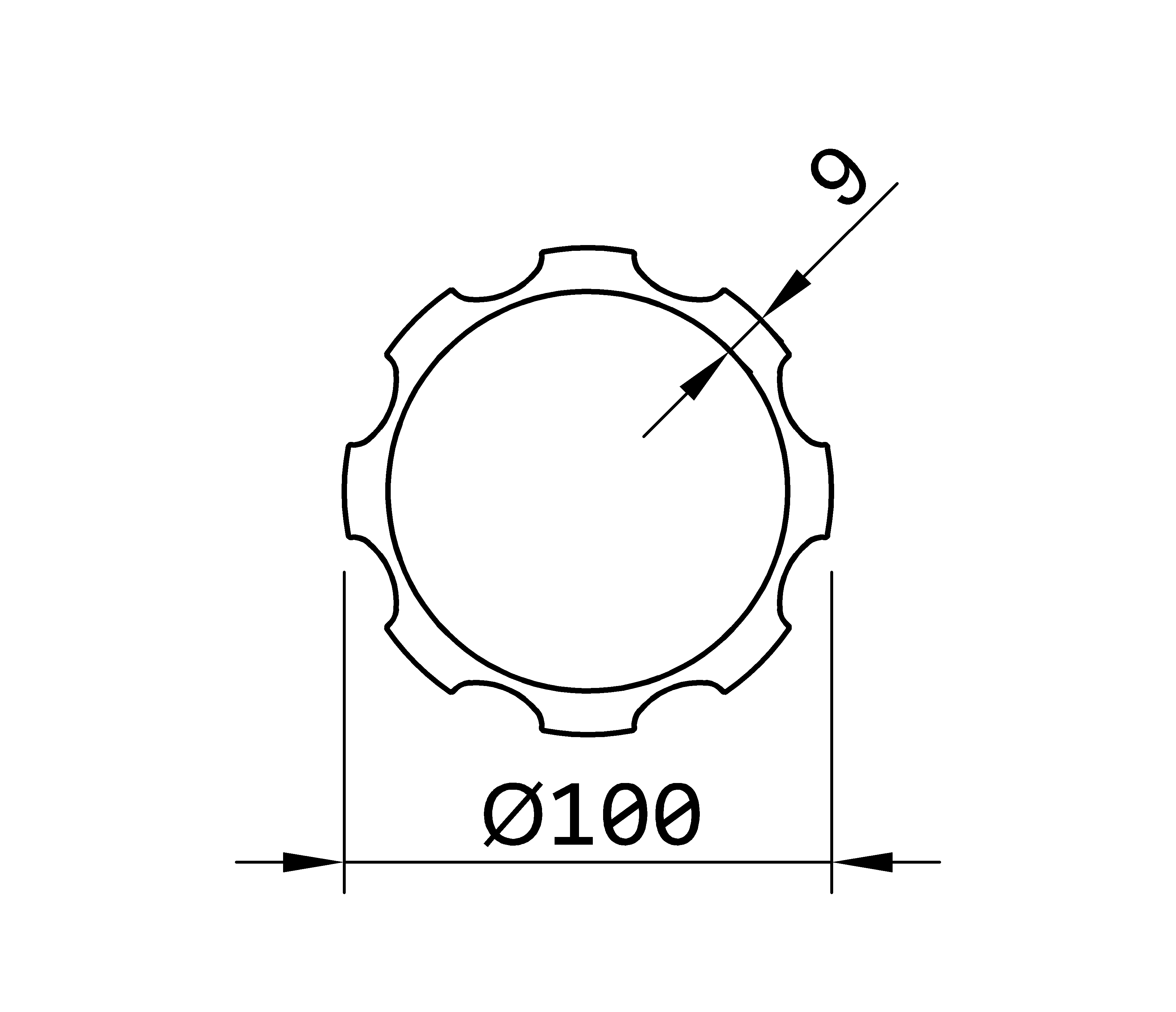

CROSS - SECTIONAL VIEW
-
EXPLODED VIEW
- CAD - DRAWING 2D
-
BUCKING LOAD REPORT
The calculations are theoretical values, if the load is close to the indicated values, please contact an engineering firm. Aluminiumgieterij Declercq can not be held responsible for any damage caused by the adaptation of the chosen column against overloading.
DC-100 P2* Dimensions available 1000 mm tot 6000 mm.
* The price of the shafts is calculated per 1/2 meter.
* Shafts are cut for free.
Here is an elegant and classical fluted shaft for our architectural and structural columns and pillars in diameter 100 mil. This authentic and 'legacy' shaft enables you to design very traditional decorative columns or posts. But you can also try it for more contemporary assemblies. It will give you the means to fully express your creativity. It can be cut at anly lenght you want, up to 3.5 meters. Note: it is always safer to keep some reserve in lenght, and make the final cut, after having made some tests on the worksite. Aluminium is very easy to cut.
